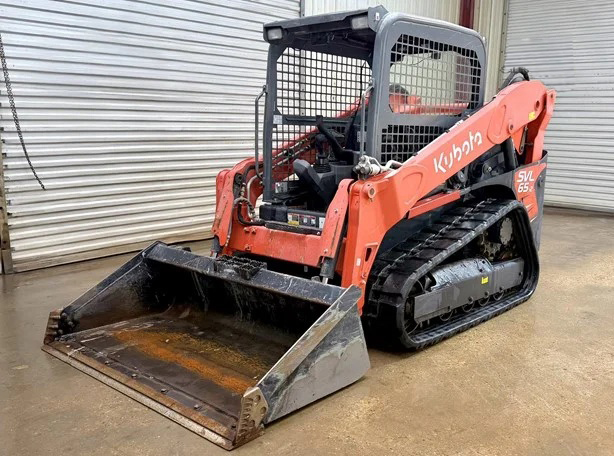

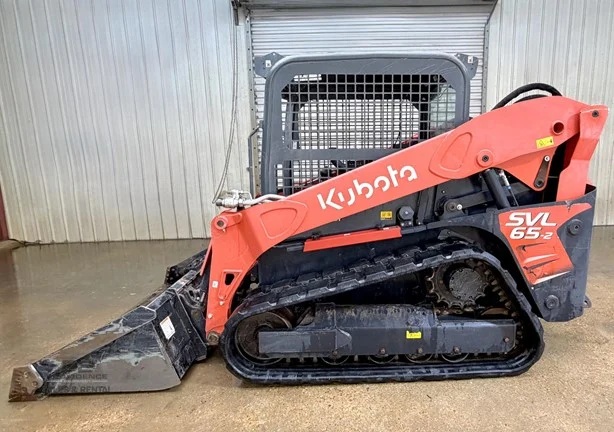

2021 Kubota SVL65-2
Equipment Summary
Machine Highlights Year: 2021 Make: Kubota Model: SVL65-2 OROPS 2-Speed Joystick Controls Standard Flow Tipping Load: 6,000LBS Operating Weight: 8,035LBS Hours: 1093 Serial Number: KBCZ021CEM1E16762 Warranty Emissions warranty until 10/14/2026 or 3,000 hours EXTENDED WARRANTY AVAILABLE FOR PURCHASE Ask one of our salesmen for more information! Engine: Model: V2607-CR-TE4 Gross HP: 68.4 HP Net HP: 62.5 HP Displacement: 159.6 cu. in. Cylinders: 4 Bore x Stroke: 3.4” x4.3” Aspiration: Turbocharged Loader Performance: Rated Operating Capacity-35% tipping load: 2100 lbs. Rated Operating Capacity-50% tipping load: 3000 lbs. Tipping Load: 6000 lbs. Breakout Force-Bucket: 4614 lbf. Breakout Force-Lift Arm: 4266 lbf. Operating Weight: 8035lbs Undercarriage: Track Width-Std: 12.6” Track Width-Wide: 15” Ground Pressure-Std: 4.9 psi Ground Pressure-Wide: 4.4 psi Track Rollers (per side): 4 Track Ground Contact Length: 57.9” Travel Speed-Low: 4.9 mph Travel Speed-High: 7.1 mph Min. Ground Clearance: 9.2” Hydraulics: Auxiliary Hydraulic Flow: 17.4 gpm Auxiliary Hydraulic Pressure: 3263 psi Service Refill Capacities: Hydraulic System: 13.2 gal Hydraulic Tank: 5.4 gal Fuel Tank: 21.7 gal Dimensions: Length of Track on Ground: 57.9” Track Gauge: 52.6” Length w/o Bucket: 107.3” Length w/ Bucket on Ground: 136.4” Height to Top of Cab: 79.9” Bucket Hinge Pin Height at Max. Lift: 118.5” Rollback Angle at Carry Position: 30 degrees Reach at Max. Lift and Dump: 34.9” Ground Clearance: 9.2” Departure Angle: 30 degrees Max. Dump Angle: 40 degrees Vehicle Width Std/Wide Track: 65.2”/67.6” Width w/ Bucket Std/Wide: 68”/74” Turning Radius from Center-Machine Rear: 57.1” 2021 KUBOTA SVL65-2 STANDARD FLOW OROPS SKID TRACK STEER LOADER, JOYSTICK CONTROLS, 2 SPEED, WITH OPERATING WEIGHT OF 8035LBS. EMISSIONS WARRANTY UNTIL 10/14/2026 OR 3,000 HOURS. EXTENDED WARRANTY
Overview
Kubota
Make
SVL65-2
Model
KBCZ021CEM1E16762
Serial Number
Very Good
Condition

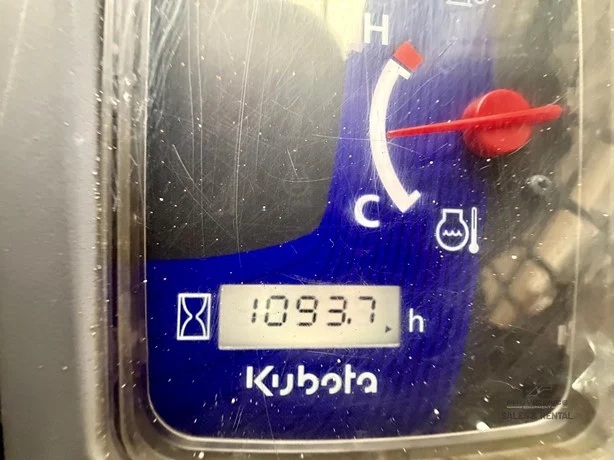

1,093
Hours Used
2021
Year
Technical Specifications
Inspection Report
199 KB
