2022 WEG M0190060-01 - 3 Units

    2022 WEG M0190060-01 - 3 Units

    2022 ModelUpstate, NY
    2 views·0 buyers saved

    Equipment Summary

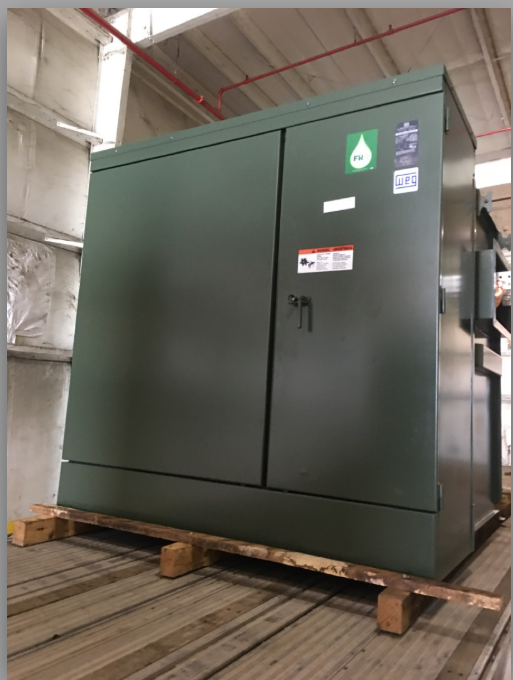

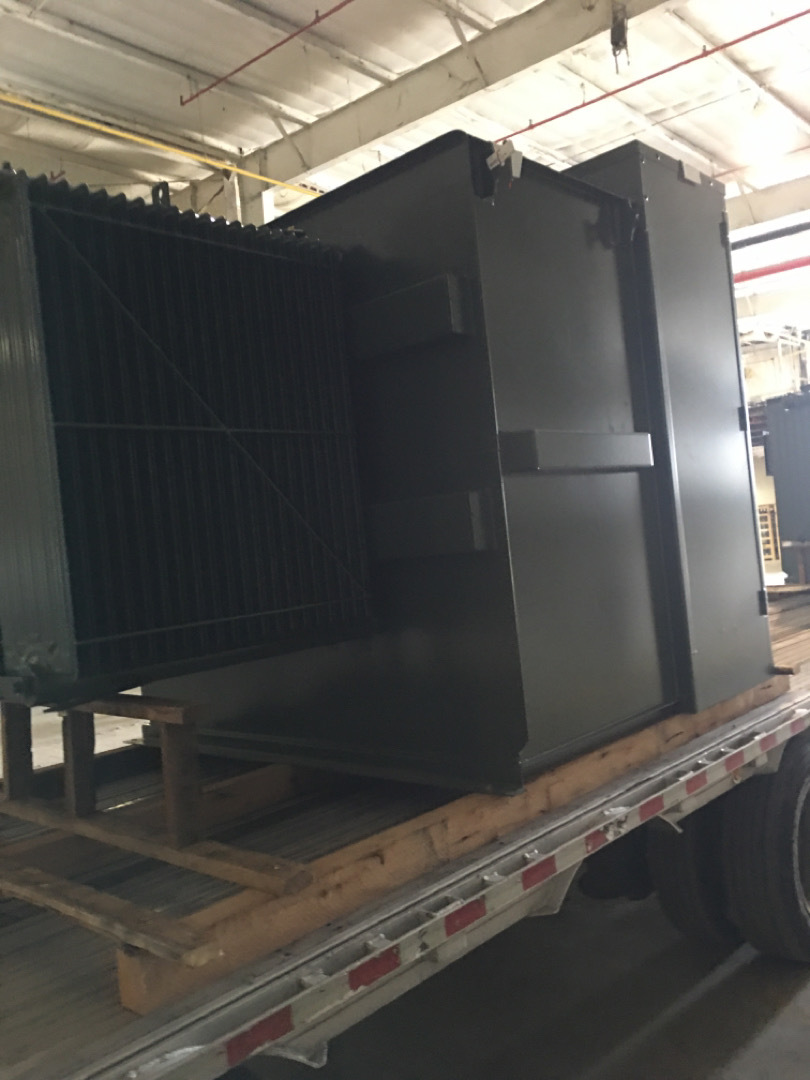

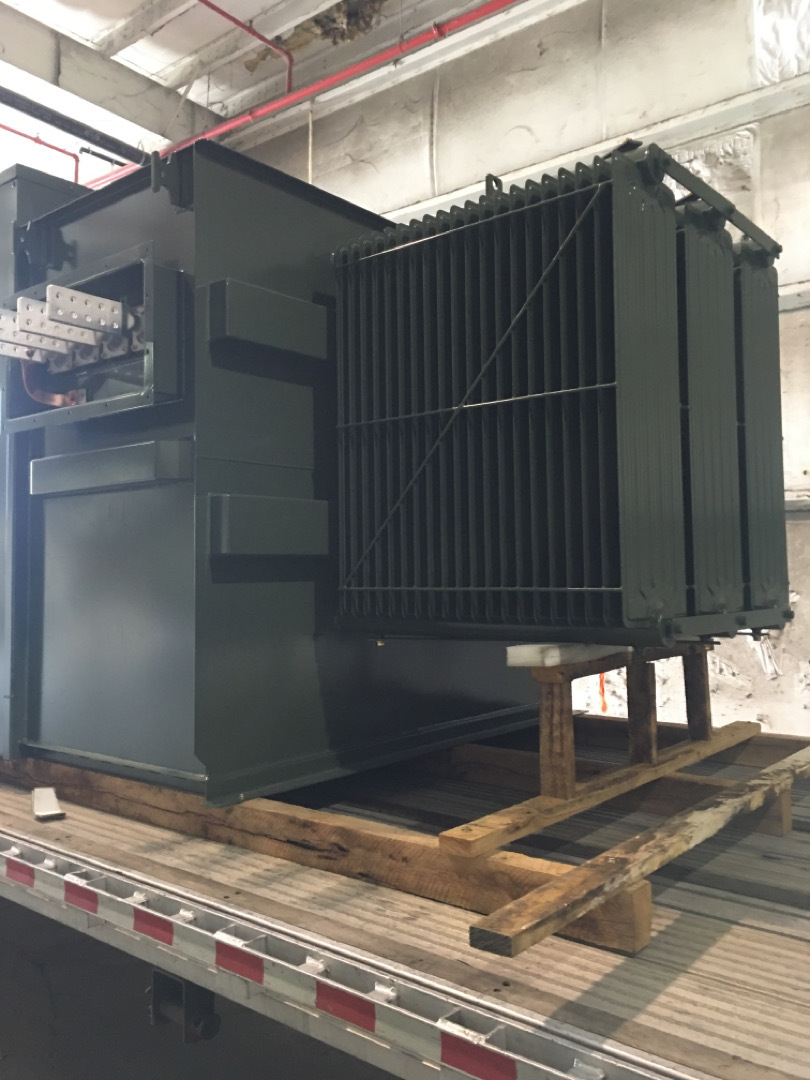

    9 pad mount transformers available, sold in batches of 3 (3 units per listing, 3 listings total). Equipment specs (per unit): - Manufacturer: WEG (Washington, MO USA) - Type: Three-phase pad mount distribution transformer - Rating: 2800 kVA - HV: 13800 V Delta (Aluminum) - LV: 600Y/346 V (Aluminum) - Impedance: 5.73% - Cooling: KNAN - Liquid: 559 gal Envirotemp FR3 - Total weight: 13,744 lbs - Temperature rise: 65°C - Date of manufacture: October 2022 - UL Listed - Designed for step-up & step-down operation @ <3300 ft ASL - Model: M0190060-01 - Sample S/N: 20112291253 (each unit has unique S/N) Location: Stored in Upstate, NY. Three units ship per truck. Background: Purchased for a renewables project that never got installed. New, never energized. Bundled bonus: As part of a "lot" purchase across all 3 batches (9 units), we can include two additional 34.5Y - 600Y transformers at no additional charge. Time-sensitive — we need an answer within a couple of days. If the units must be relocated before a deal closes, our cost (and pricing) goes up. Pricing: $135,000 per batch of 3 units. Launch-window price: $125,000 per batch of 3 units.

    Overview

    WEG

    Make

    M0190060-01

    Model

    N/A

    Serial Number

    Excellent

    Condition

    N/A

    Hours Used

    2022

    Year

    Technical Specifications

    Transformer Typepad_mount
    Phase3
    kVA Rating2800 kVA
    Voltage Hv13800 Delta V
    Frequency60 Hz
    Impedance5.73 %
    Temperature Rise65 °C
    Cooling ClassKNAN
    Insulating LiquidEnvirotemp FR3
    Liquid Volume559 gal
    Total Weight13744 lbs
    Winding MaterialAluminum
    Ul ListedYes
    Year Manufactured2022
    Model NumberM0190060-01
    Units Per Batch3
    Total Units Available9
    Voltage Lv600Y/346 V
    Type DesignationStep-up | 3 Phase | 60 Hertz | Two Winding | Liquid Filled
    Primary Voltage13.8 kV
    Secondary Voltage0.600 kV
    Hv Winding ConfigDelta
    Lv Winding ConfigWYE-UNGROUNDED (per spec sheet; nameplate shows 600Y/346)
    Winding InsulationIn compliance with IEEE Std C57.12.00-2000
    Primary Bushing600A bushings
    Secondary BushingSpade type (allows field replacement w/o opening the tank)
    Bilper ANSI
    Impedance Target5.75 %
    Xr Ratio8
    Tap ChangerDe-energized Tap Changer (DETC), Mechanical Off-load
    Taps(2) at 2.5% above and (2) at 2.5% below nominal, all rated for 100% output on Primary winding
    Dielectric OilBiodegradable, low flammability fluid (Envirotemp FR3)
    Protection3 Bay-o-net with expulsion fuse and ELSP current limiting fuses, accessible through tank hand-hole
    Surge Arrester10.2 MCOV
    Efficiency≥ 99% at 100% of rated output
    SwitchHook stick operated loadbreak disconnect switch
    Elevation Rated1000 m / 3,000 ft
    Color Paint FinishMunsell Green no. 7GY/3.29/1.5; high-corrosion environment marine-grade corrosion inhibiting primer; powder coat finish
    LossesStandard, contractor to provide design/guarantee value
    InstrumentationOil level, temperature and pressure gauges, and Schrader valve
    ValvesDrain valve with oil and dissolved gas analysis sampling provisions accessible
    GroundingNEMA 2 hole
    AnchorsAnchor points
    Inspection FeaturesIR transparent window in LV cabinet door for thermographic imaging of LV connections (stand-alone transformers)
    ConstructionCompartmental, tamper-resistant, self-cooled, pad mount, dead front, loop or radial feed; conforms to ANSI grounding transformer standards
    Design DrawingsStandard package
    Reference StandardsANSI C57.12.28; C57.12.29; IEEE Std C57.12.38; IEEE Std C57.12.35; IEEE Std C57.12.90; IEEE Std C57.12.00-2000 (where applicable for grounding standards); IEEE Std C57.12.91; IEEE Std C57.154; NEMA TR 1 (R2000); CFR Part 431

    No attachments or optional equipment listed.

    MSU Equipment Specifications

    233 KB

    This listing has been sold

    Launch Deal

    $125,000 USD

    Save $10,000

    Asking Price

    $135,000 USD
